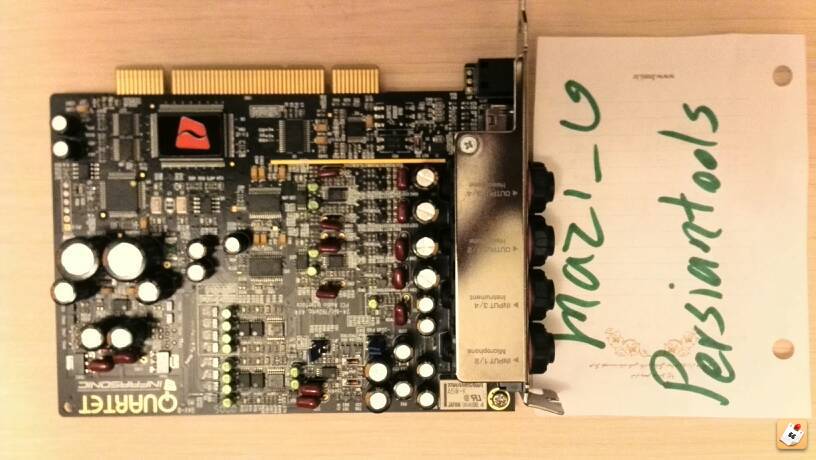

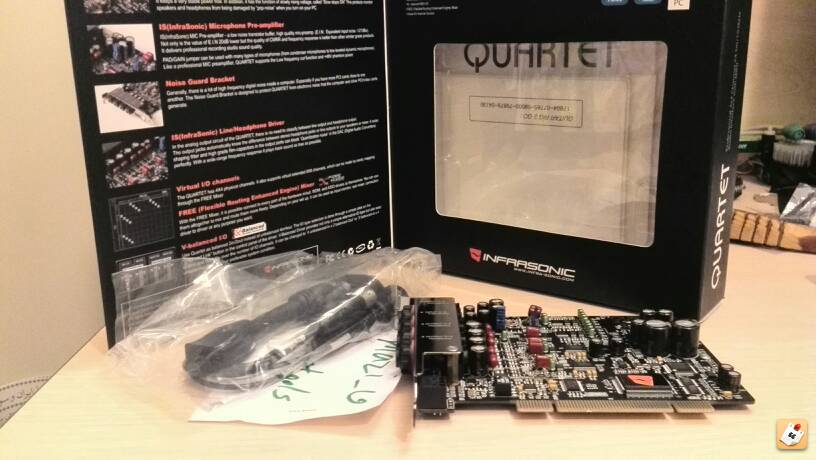

سلام.بعد از مدتی توی انبار بودن دوباره قصد فروش این کارت را دارم
این کارت را چند سال پیش خریداری شد.برای اجرای برنامه های افکت گیتار الکتریک مثل گیتار ریگ و .. .اما چون فرصت نشد تمرین گیتار این کارت هم بی استفاده مونده و سر جمع یک ماه هم استفاده نشد.
در ضمن کره ای هست و کیفیت ساختش خیلی بالاست.
قیمت فعلا پیشنهادی.
مشخصات دقیقش توی لینک زیر هست.
http://simsaudio.co.kr/sims_infrasonic/bbs/board.php?board=products&command=other_insert&exe=p_PCI_quartet
PCI Compatible, Multi-Function Sound Editing for Your PC Audio Studio
The INFRASONIC QUARTET is a multi purpose pro audio interface card using stable PCI bus technology. QUARTET provides high quality, multi-function, sound editing for your home studio.
QUARTET has better performing analog I/Os than other cards in its class. It supports a 192 kHz ADC sample-rate with full 24-bit recording. The high-quality AD/DA converter has 115dB signal-to-noise (S/N) ratio. The high-end components in the analog circuit improve dynamic range by 10dB.
Other features include a MIC preamp, direct instrument input, MIDI I/O, Coaxial I/O, Word clock I/O and Dual Headphone amplifiers QUARTET is professional gear that will satisfy in features, performance and convenience.
Features
Total 4 x 4 channel 24-bit/192kHz Audio Interface
V-Balanced™ Driver Technology (IO Changes to 2x2,2x4,4x2 between unbalanced and balanced)
PCI Slot compatibility designed to suit +3.3V and/or +5V PCI slot
Precision low noise Microphone preamplifier with +48V phantom and Low cut
Built-in Selectable Direct Instrument Input
Built-in high quality Dual Headphone amplifier
High quality Audio-Converters and expert analog technology
ADC : 113dB dynamic range (up to 24-bit/192kHz)
DAC : 115dB dynamic range
Hardware mixer for direct monitoring.
Uses Cross-Latch type 1/4" TRS Stereo jack for reliable analog I/O
RCA connector for Coaxial I/O (Support up to 192kHz)
Shutter type optical output jack for S/PDIF output
Supports pass-through AC-3/DTS
Word Clock I/O : Fs / 256*Fs, BNC Connector
FREE Mixer
Virtual Channel Function
Support ASIO2, WDM, DirectSound
این کارت را چند سال پیش خریداری شد.برای اجرای برنامه های افکت گیتار الکتریک مثل گیتار ریگ و .. .اما چون فرصت نشد تمرین گیتار این کارت هم بی استفاده مونده و سر جمع یک ماه هم استفاده نشد.
در ضمن کره ای هست و کیفیت ساختش خیلی بالاست.
قیمت فعلا پیشنهادی.
مشخصات دقیقش توی لینک زیر هست.
http://simsaudio.co.kr/sims_infrasonic/bbs/board.php?board=products&command=other_insert&exe=p_PCI_quartet
PCI Compatible, Multi-Function Sound Editing for Your PC Audio Studio
The INFRASONIC QUARTET is a multi purpose pro audio interface card using stable PCI bus technology. QUARTET provides high quality, multi-function, sound editing for your home studio.
QUARTET has better performing analog I/Os than other cards in its class. It supports a 192 kHz ADC sample-rate with full 24-bit recording. The high-quality AD/DA converter has 115dB signal-to-noise (S/N) ratio. The high-end components in the analog circuit improve dynamic range by 10dB.
Other features include a MIC preamp, direct instrument input, MIDI I/O, Coaxial I/O, Word clock I/O and Dual Headphone amplifiers QUARTET is professional gear that will satisfy in features, performance and convenience.
Features
Total 4 x 4 channel 24-bit/192kHz Audio Interface
V-Balanced™ Driver Technology (IO Changes to 2x2,2x4,4x2 between unbalanced and balanced)
PCI Slot compatibility designed to suit +3.3V and/or +5V PCI slot
Precision low noise Microphone preamplifier with +48V phantom and Low cut
Built-in Selectable Direct Instrument Input
Built-in high quality Dual Headphone amplifier
High quality Audio-Converters and expert analog technology
ADC : 113dB dynamic range (up to 24-bit/192kHz)
DAC : 115dB dynamic range
Hardware mixer for direct monitoring.
Uses Cross-Latch type 1/4" TRS Stereo jack for reliable analog I/O
RCA connector for Coaxial I/O (Support up to 192kHz)
Shutter type optical output jack for S/PDIF output
Supports pass-through AC-3/DTS
Word Clock I/O : Fs / 256*Fs, BNC Connector
FREE Mixer
Virtual Channel Function
Support ASIO2, WDM, DirectSound
