يك پيشنهاد خوب براي دوستان كه قصد خريد يك سيستم AMD با گرافيك آنبرد قدرتمند و همراه ريموت مديا سنتر رو دارند برد زير ميباشد

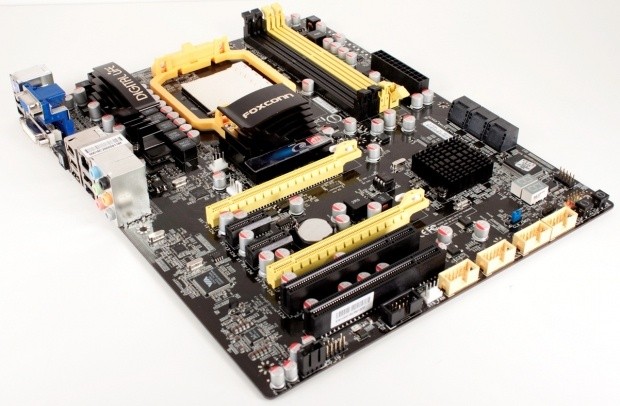

foxconn Cinema II Deluxe
مشخصات
Processor: AMD Phenom™ II x4, Phenom™II x3, Athlon™II processors, Socket AM3
Chipset: AMD® 785G + SB710
Front Side Bus: 5.2 GT/s HyperTransport
Memory: Dual channel DDR3 1600/1333/1066 x 4 DIMMs, Max. 16GB
VGA on Die: Integrated ATI® Radeon™ HD4200
Expansion Slots: 1* PCIe 2.0 x16, 2* PCIe 2.0 x1, 1* PCI
IDE: N/A
Serial ATA(SATA)/RAID: SATAII * 4 + eSATA * 1 w / RAID 0, 1, 10, 5
Audio: 7.1 channel HD Audio
LAN: Gigabit Lan
IEEE1394: IEEE1394a x 2
Back Panel I/O Ports: 1 x PS/2 keyboard port
1 x VGA connect
1 x DVI port
1 x HDMI port
1 x IEEE 1394a port
1 x Audio connector with 6 jacks
6 x USB 2.0 ports
1 x RJ45 LAN port
1 x S/PDIF out port
Internal I/O Connectors: 1 x ATX 24-Pin power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin CPU Fan connector
1 x 3-pin System Fan connectors
2 x 3-pin Fan power connectors
1 x CD-in connector
1 x S/PDIF out header
1 x Front Panel header
1 x Front Audio header
3 x USB 2.0 connectors support additional 6 ports
4 x SATAII connectors
1 x eSATA header
1 x IEEE 1394a header
1 x Intrusion Alarm header
1 x IrDA header
1 x COM header
1 x Speaker
BIOS Features: 8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Support CD: Drivers, DirectX10, Adobe Reader, SuperUtilities, Norton Internet Security
Standards/Manageability: PCI 2.3, USB2.0, DMI 2.5
Special Features: *Supports ATI® Hybrid graphics technology
*ATI® Radeon™ HD4200 graphics engine
Supports DirectX 10.1
Supports AMD® UVD2.0, Unified Video Decoder (H/W decoder for H.264,
VC-1 and mpeg-2 video formats)
Supports HDMI/DVI/HDCP
With 128MB DDR3 1333 Side Port Memory onboad
)
