دوستان امروز يه چيز جالب ديدم . دو برد مبتني بر چيپ هاي جديد via , nvidia روي سوكت 754 .

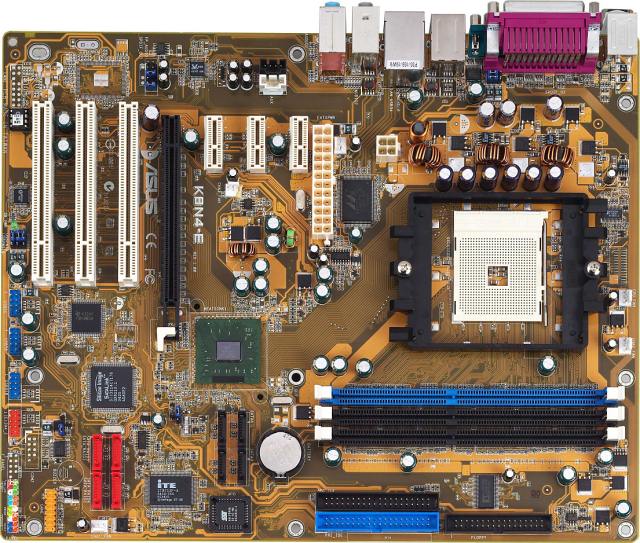

ASUS K8N4-E
asus بردي مبتني بر nForce4 ساخته كه داراي pci-e است .
Boards specs:
* AMD Athlon 64/Sempron Socket 754 processors
* 3 x sockets for up to 3GB 400/333/266 non-ECC DDR
* NVIDIA nForce4-4x, 800 MHz HyperTransport
* PCI Express x16, 3 x PCI Express x1, 3 x PCI
* 8 x Serial ATA RAID (0/1/0+1/5/10/JBOD), 2 x Ultra ATA 133/100/66/33
* 8ch Realtek ALC850, S/PDIF output
* Gigabit LAN Marvel 88E1111 PHY
* 2 x IEEE-1394, 10 x USB 2.0
قيمت اين برد در فروشگاههاي ژاپني حدود 160 دلار است .
Soltek SL-K890PRO-754
اين برد مبتني بر K8T890 است .
Chipset VIA K8T890 + VT8237
Processor CPU Socket 754 on board.
Front Side Bus Hyper Transport 800MHz.
Memory 2 x 184-pin DDR DIMM Sockets.
Supporting unregistered non-ECC DDR 400/333/266 DRAM up to 2GB.
Expansion Slots 1 x PCI Express*16 Slot.
3 x PCI Express*1 Slots.
2 x PCI Slots.
On-Board EIDE 2 x ATA133/100/66 IDE connectors supporting up to 4 IDE devices.
1 x ATA 133/100 IDE connector supporting up to 2 IDE devices by Promise PDC20579.
On-Board SATA 2 x Serial ATA connectors supporting 2 Serial ATA HDDs. (by VT8237)
2 x Serial ATA connectors supporting 2 Serial ATA HDDs. (by Promise PDC20579)
Integrated Super I/O 1 x Floppy Port.
1 x PS/2 Mouse Port.
1 x PS/2 Keyboard Port.
1 x Gigabit LAN Port.
1 x Parallel Port. (via optional cable)
1 x Serial Port.
8 x USB 2.0/1.1 Ports. (4 integrated, 4 via optional cables)
Audio Ports.
2 x IEEE1394 Ports. (1 integrated, 1 via optional cable)
1 x S/PDIF In Port.
1 x S/PDIF Out Port.
RAID 2 x Serial ATA connectors supported by VT8237. (RAID0, 1)
2 x Serial ATA connectors and 1 x ATA133/RAID IDE Port supported by Promise PDC20579. (RAID0, 1, 0+1)
IEEE1394 2 x IEEE1394 Ports. (1 integrated, 1 via optional cable)
Audio 8-Channel AC'97 Audio.
LAN Gigabit 10/100/1000 LAN Function.
BIOS Award BIOS.
Flash Memory for easy upgrade.
Form Factor ATX Form Factor (245mm x 305mm)
Other Features BIOS FSB Setting.
BIOS DIMM, Vcore Voltage Setting.
BIOS Multiplier Setting.
RedStorm2 Overclocking Technology. (optional)
Soltek H/M Monitor.
STR Function.
Debug LED onboard.
